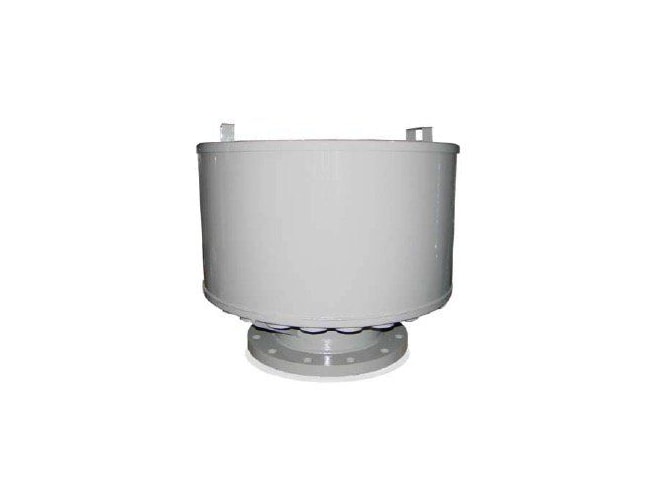

Air Engineering FS-484P-1000F Filter Silencer

Name: Air Engineering FS-484P-1000F Filter Silencer
Availability: BackOrder

Solberg Big Boy Filter Silencer - FS Series Paper | 10" Flange | FS-484P-1000F.

Call 508-217-6345 for pricing

Part Number

FS-484P-1000F

Manufactured

By Air Engineering

Availability

Call for availability

Solberg FS Series 6"-14" Flange - Big Boy Filter Silencers
Inlet Filter Silencers, Up to 6000 SCFM (7990 m³/hr)

Features

99%+ removal efficiency standard Polyester: 5 microns, Paper: 2 microns

Tubular silencing design - tube is positioned to maximize attenuation and air flow while minimizing pressure drop

Interchangeable elements

Temp (continuous): min -15° F ( -26° C) max 220° F (104° C)

Filter change out differential: 10"-15" in. H2O above initial delta P

Typical noise attenuation up to 15 dB's (due to the wide range of applications and machines these units are used on, a single graph is insufficient. Please inquire for your specific requirement)

Pressure drop graphs available upon request

Low pressure drop center bracket and outlet pipe design

Durable carbon steel construction with baked enamel finish

Several elements available at a given connection size providing a choice according to the severity of your application

Applications

Ash Handling

Blowers-Side Channel

Cement

Compressor-Piston

Compressor-Screw

Construction\Contractor Industry

Dock Controls

Envelope Manufacturing

Hydraulic Breathers - fine filtration

Pneumatic Conveying Systems

Power Plants

Sparging

Waste Water Aeration

Industrial & Severe Duty

Blowers-PD Type

Options

Various elements available

Available in Stainless Steel

Hot dipped galvanized housings

SPECIALTY Media Available- Higher Efficiency, Custom Media

0-100 psig pressure gauges on inlet and outlet

Specialty media & gaskets/seals for custom installations / applications
